Rotation-Measure Synthesis

FLITS performs weighted one-dimensional rotation-measure (RM) synthesis on a channelized complex linear-polarization spectrum, P = Q + iU. It retains the dirty Faraday dispersion function (FDF), the complex rotation-measure spread function (RMSF), and—when requested—a separate RM-CLEAN reconstruction.

The implementation follows Brentjens & de Bruyn (2005). RM-CLEAN follows the one-dimensional deconvolution described by Heald, Braun & Edmonds (2009).

There are two ways in:

  • From the session, when the burst file carries four polarization products. FLITS builds the Stokes cube, integrates Q and U over the session's own event window, takes the channel uncertainties from its off-pulse regions, and drops the channels its mask and spectral extent exclude. The result is stored on the session, so it travels in snapshots, export bundles and flits replay like every other analysis.
  • From an imported spectrum, when Q and U were prepared elsewhere. This path is unchanged: import a calibrated channelized Q/U spectrum as JSON or CSV.

Measuring the RM from the session

What the file has to carry

A burst file can only yield a Stokes cube if it holds four polarization products and something establishes which four they are. FLITS never guesses: reading coherency products as though they were Stokes swaps V into Q and produces an RM that is wrong without looking wrong.

The basis is resolved in this order:

  1. an explicit polarization_basis on the session (the Polarization basis control, or the polarization_basis argument to BurstSession.from_file);
  2. the telescope preset, for instruments whose headers are known to misreport this — NRT filterbanks carry linear-feed coherency products while the header claims IQUV;
  3. the file header: PSRFITS POL_TYPE together with FD_POLN.

SIGPROC records nothing about which products a nifs=4 file holds, so a filterbank always needs a preset or an explicit basis. If none of the three settles it, FLITS refuses with unknown_basis rather than picking one.

The three recognized bases are:

Basis Products Stokes
iquv I, Q, U, V used as-is
coherency_linear AA, BB, CR, CI from a linear feed I=AA+BB, Q=AA-BB, U=2CR, V=2CI
coherency_circular AA, BB, CR, CI from a circular feed I=AA+BB, V=AA-BB, Q=2CR, U=2CI

Browser workflow

Open Polarization in the Analysis Workspace and use Measure From This Session. The status line reports how many polarization products the file has and which basis was established, or what is missing. Set the minimum channel linear-polarization S/N, confirm the calibration checkbox if the polarization calibration of this dataset has been established, and click Measure RM From Session.

The measurement uses the session's current selections, so refine the event window, the off-pulse regions, the channel mask and the spectral extent first — changing any of them discards the previous result rather than leaving a stale one on screen.

Python usage

from flits.session import BurstSession

session = BurstSession.from_file("burst.fil", dm=528.0)
session.set_event_ms(97.4, 104.4)
session.add_offpulse_ms(32.0, 82.0)
session.add_offpulse_ms(120.0, 1200.0)

result = session.run_polarization_analysis({"min_linear_snr": 3.0})
print(result.peak_rm_rad_m2, result.peak_rm_uncertainty_rad_m2)
print(result.linear_fraction, result.circular_fraction)

result.rm_synthesis holds the full RM-synthesis payload documented below. The result also records the basis and what established it, the exact event and off-pulse windows, the channels that survived, and the integrated Stokes I, Q, U and V spectra — which supports replay from the snapshot and original data.

Reading the cube directly

from flits.io import load_stokes_data
from flits.settings import ObservationConfig

config = ObservationConfig.from_preset(dm=528.0, preset_key="nrt")
cube, metadata = load_stokes_data("burst.fil", config)  # (4, channels, time)

load_stokes_data returns the same time and frequency grid as load_filterbank_data for the same file and config, so a cube can be used alongside the Stokes-I dynamic spectrum without re-deriving anything. Readers that cannot produce a cube raise PolarizationUnavailableError with a reason of reader_unsupported, insufficient_products or unknown_basis.

Each Stokes parameter has its own off-pulse baseline removed, but all four are divided by a single per-channel scale taken from Stokes I. Scaling them independently would rescale Q/I and U/I channel by channel and corrupt every polarization fraction measured from them.

Prepare an imported spectrum

RM synthesis needs a calibrated Q/U spectrum, not a Stokes-I dynamic spectrum. Before importing data:

  1. remove the Q and U off-pulse baselines;
  2. apply the instrument's polarization and leakage calibration;
  3. flag unusable channels consistently in Q and U;
  4. integrate the selected burst window into one Q and U value per channel;
  5. estimate sigma_q and sigma_u from suitable off-pulse data; and
  6. retain the true channel width for the bandwidth-depolarization limit.

Frequency values are channel centres in MHz. Q, U, and their uncertainties must use the same units. FLITS can run without uncertainties, but then uses equal weights and estimates the noise from the residual of the best Faraday-thin component. This is less reliable for complex sources.

Browser workflow for an imported spectrum

Open Polarization in the Analysis Workspace:

  1. Click Import JSON or CSV. The analysis runs once immediately with the displayed defaults when the input declares calibration_status: calibrated. Otherwise confirm Polarization calibration applied after checking the dataset provenance; FLITS deliberately will not run before that confirmation.
  2. Review the detected channel count, frequency range, uncertainty status, and channel-width status.
  3. Adjust the Faraday-depth bounds or step when the automatic coverage is not appropriate. Blank fields use the wavelength-coverage defaults.
  4. Leave Apply RM-CLEAN enabled when RMSF sidelobes need deconvolution. The dirty spectrum is always retained.
  5. Click Run RM Synthesis after changing a setting.
  6. Inspect both plots: the FDF/RMSF plot and Q/U with the best Faraday-thin model. A high reduced chi-square indicates that one component, the noise model, or the calibration does not describe the data.
  7. Download the complete result as JSON and the sampled FDF as CSV.

The browser accepts either column-oriented JSON:

{
  "freqs_mhz": [900.0, 901.0, 902.0],
  "stokes_q": [0.12, 0.08, -0.01],
  "stokes_u": [-0.03, 0.09, 0.13],
  "sigma_q": 0.01,
  "sigma_u": 0.01,
  "channel_width_mhz": 1.0,
  "calibration_status": "calibrated"
}

or a CSV table. Short aliases such as frequency_mhz, q, u, q_err, and u_err are recognized:

frequency_mhz,q,u,q_err,u_err,channel_width_mhz
900.0,0.12,-0.03,0.01,0.01,1.0
901.0,0.08,0.09,0.01,0.01,1.0
902.0,-0.01,0.13,0.01,0.01,1.0

At least eight usable rows are required. The short examples above show the format only and are not sufficient to run an analysis.

Python and API usage

from flits.analysis import run_rm_synthesis

result = run_rm_synthesis(
    freqs_mhz=freqs_mhz,
    stokes_q=stokes_q,
    stokes_u=stokes_u,
    sigma_q=sigma_q,
    sigma_u=sigma_u,
    channel_width_mhz=channel_width_mhz,
    phi_min_rad_m2=-5000,
    phi_max_rad_m2=5000,
    phi_step_rad_m2=1,
    clean=True,
    clean_gain=0.1,
    clean_threshold_sigma=3.0,
    clean_max_iterations=1000,
)

if result.status != "ok":
    raise ValueError(result.message)

The same fields are accepted by POST /api/rm-synthesis. Uncertainties and channel widths may be scalars or arrays with one value per channel. Invalid settings return a structured result status from the Python function; request schema errors return the usual HTTP validation response.

Automatic sampling and reported limits

By default FLITS:

  • searches from -max_abs_rm_rad_m2 to +max_abs_rm_rad_m2;
  • samples the FDF at five points per theoretical RMSF FWHM;
  • computes the maximum observable absolute RM from the widest channel in wavelength-squared space;
  • measures the RMSF FWHM from the actual flagged, weighted channel set (while also retaining the ideal uniform-coverage estimate);
  • uses the supplied channel widths, or infers local widths from channel-centre spacing and emits channel_width_inferred; and
  • evaluates large transforms in bounded chunks. Grids above 100,001 points are rejected with guidance to narrow the range or increase the step.

The peak position is refined between grid samples with a three-point parabolic fit to FDF power. The nominal Faraday-thin uncertainty is RMSF FWHM / (2 × peak S/N).

When uncertainties are supplied, FLITS uses inverse complex-variance weights, propagates the Faraday noise, and reports the reduced chi-square of the best single thin-component Q/U model. Otherwise it reports residual-MAD noise and does not claim a chi-square. The global false-alarm probability is an approximation based on Gaussian Q/U noise and the number of independent RMSF-sized trials. Real calibration residuals and non-Gaussian noise can make it too optimistic. George, Stil & Keller (2012) show why an 8-sigma threshold is a safer default for broad RM searches than lower thresholds.

Interpreting the output

Key fields include:

  • peak_rm_rad_m2 and peak_rm_uncertainty_rad_m2;
  • peak_snr and approximate false_alarm_probability;
  • measured and debiased peak polarized amplitudes;
  • polarization angle at the weighted reference wavelength squared and the extrapolated zero-wavelength angle;
  • RMSF FWHM and maximum sidelobe;
  • effective channel count and maximum single-channel weight, which expose fragile results dominated by a small part of the band;
  • largest recoverable Faraday scale and maximum observable absolute RM;
  • dirty complex FDF, complex RMSF, restored RM-CLEAN FDF, and CLEAN components; and
  • machine-readable warnings for every important caveat.

A Faraday-depth peak is not automatically an intrinsic source RM

FLITS does not calibrate instrumental leakage or position angle, and it does not calculate an ionospheric correction. RM-CLEAN removes RMSF sidelobes; it does not fix calibration errors, bandwidth depolarization, a poor noise model, or unresolved Faraday complexity. Apply those corrections upstream and preserve them in the analysis provenance before publishing a source RM.

Reproducible RM-Tools validation example

The checked-in worked example uses the official synthetic one-dimensional validation spectrum from CIRADA RM-Tools. It is not an observation or a claim about an astrophysical source. It is a controlled, analysis-ready Q/U dataset with a reference result from an independent implementation, which makes it suitable for verifying the entire FLITS path.

The raw source and reference values are distributed like the GBT guided-workflow file: as versioned assets on the FLITS tutorial-data-v1 GitHub release. To download explicit working copies:

mkdir -p tutorial-data
curl -L -o tutorial-data/flits-tutorial-rmtools-reference-v1.dat \
  https://github.com/DirkKuiper/flits/releases/download/tutorial-data-v1/flits-tutorial-rmtools-reference-v1.dat
curl -L -o tutorial-data/flits-tutorial-rmtools-reference-values-v1.json \
  https://github.com/DirkKuiper/flits/releases/download/tutorial-data-v1/flits-tutorial-rmtools-reference-values-v1.json

Run the validation from the repository root with those files:

python examples/rmtools_reference_workflow.py \
  --source tutorial-data/flits-tutorial-rmtools-reference-v1.dat \
  --reference tutorial-data/flits-tutorial-rmtools-reference-values-v1.json

With no file arguments, the script first looks under the ignored local data/RM-Tools directory and otherwise downloads the same release assets.

The script performs the complete reproducibility chain:

  1. reads local tutorial files or downloads their versioned FLITS release assets;
  2. rejects either file unless its SHA-256 checksum matches;
  3. parses all 288 frequency, Q, U, and uncertainty samples;
  4. writes browser-importable JSON;
  5. runs weighted RM synthesis and RM-CLEAN in FLITS;
  6. compares RM, peak amplitude, S/N, and channel count with the official reference; and
  7. fails instead of writing a passing summary when any tolerance is exceeded.

The source covers 800–1088 MHz and is distributed by RM-Tools under the MIT license. The pinned source URL, commit, checksum, upstream URL, FLITS distribution URL, and license URL are retained inside both generated JSON artifacts. The data is marked calibrated for the browser gate because it is a synthetic validation product with fully specified Q/U uncertainties; instrument calibration is not applicable.

The machine-readable validation summary records the following independently checked result:

Quantity RM-Tools reference FLITS Absolute difference
Peak RM (rad m⁻²) 200.29004 200.28831 0.00173
RM uncertainty (rad m⁻²) 0.24806 0.25212 —
Peak amplitude 0.699674 0.699678 0.000004
Peak S/N 118.73860 118.73935 0.00075
Channels 288 288 0

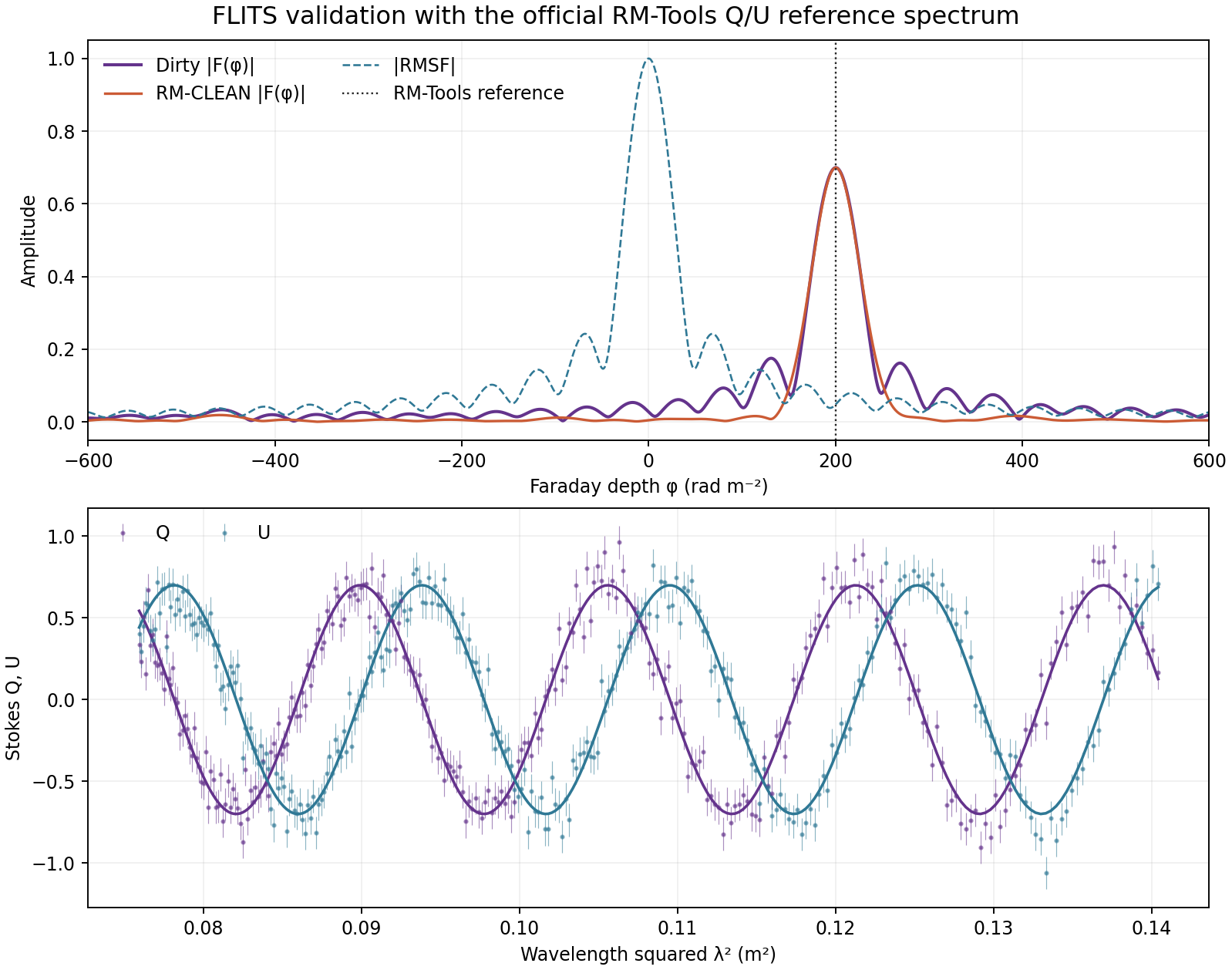

FLITS dirty and RM-CLEAN spectra, RMSF, and fitted Q/U model for the official RM-Tools validation data.

The FLITS–RM-Tools RM difference is about 0.7% of the quoted 1σ uncertainty and well inside the executable example's 0.5 rad m⁻² acceptance limit. The example also verifies amplitude to 0.001 and S/N to 0.1. Tests rerun the checked-in browser input through FLITS, so documentation cannot silently drift away from the implementation.
